As part of the licensing deal with Finish Line, Left Field delivered the first ten thousand units of the No Drip Chain Luber, including production tooling. I developed a pneumatic fixture to press fit the (red) applicator into the off-shelf spout cap (minus spout). The fixture assembles four applicator caps at a time, delivering precise pressure so that the resulting parts have a pressure-tight seal to prevent leakage.

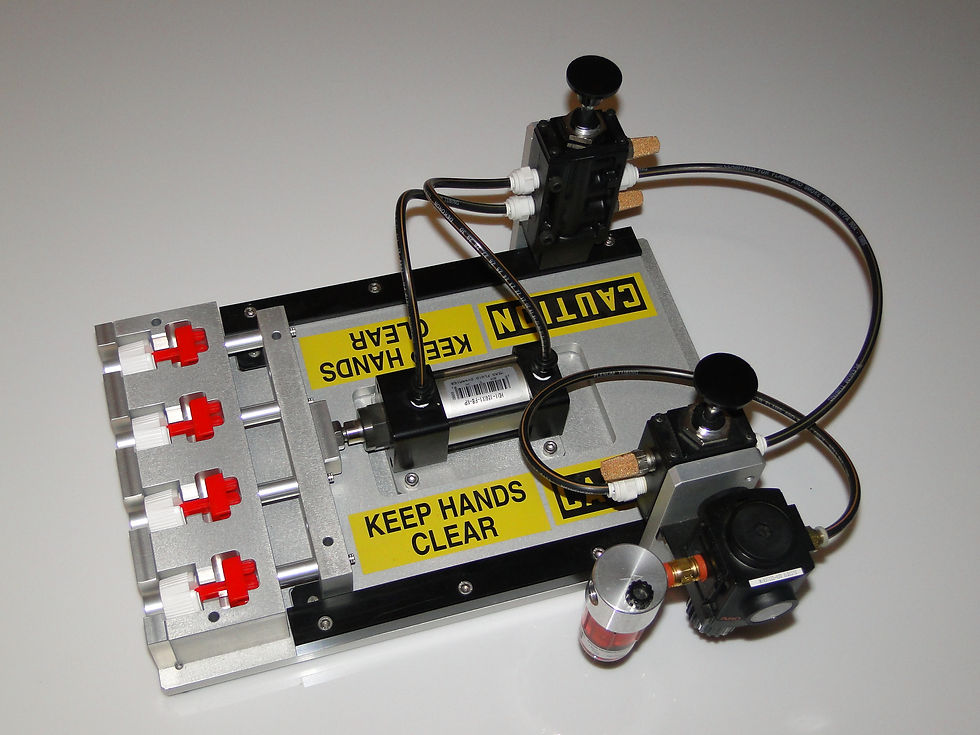

Fixture Open:
Fixture Open:

applicators and caps are dropped in place for assembly.

press to zoom

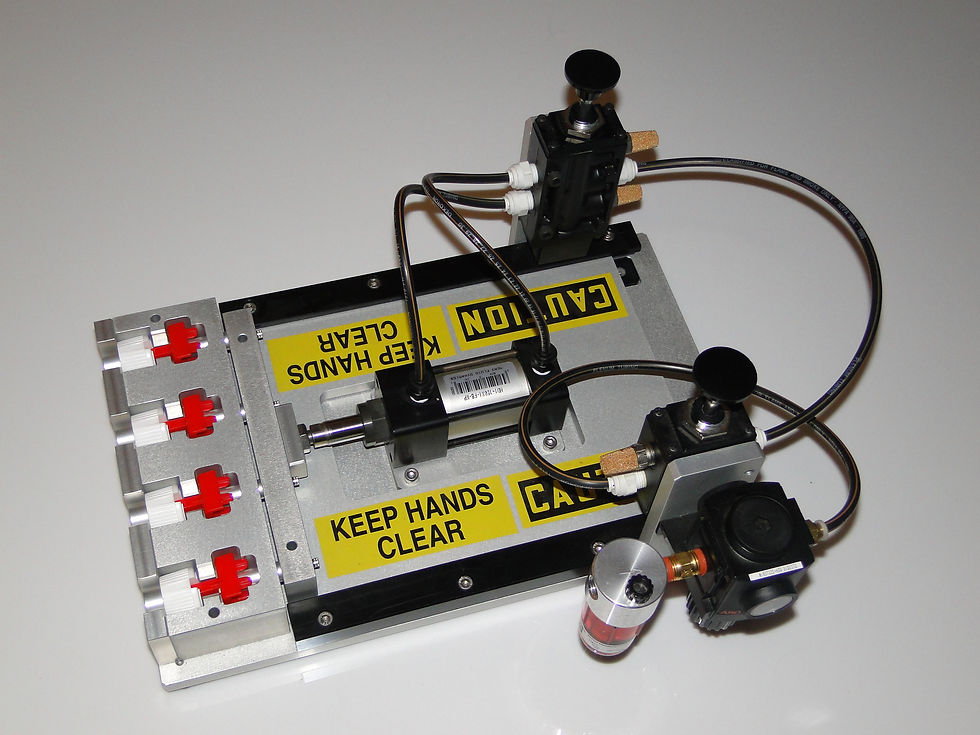

Fixture closed:
Fixture closed:

applicators and caps become press-fit assemblies.

press to zoom
MCAD concept rendering
MCAD concept rendering
press to zoom

No Drip assembly fixture
